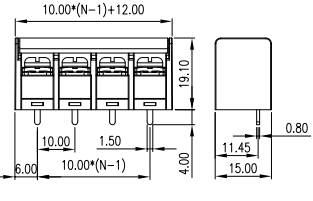

American & Japanese terminal blocks F-55S...-C-10.0

? Pitch：10.0mm，Electrical：UL，Rated Voltage：300V，Rated Current：20A，colour：black ;

? In order to meet the requirements of different application,With and without plastic cover are optional ;

? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

→ Pitch：10.0mm

→ Electrical：UL

→ Rated Voltage：300V

→ Rated Current：20A

→ Wire Diameter Range（AWG/mm2）：22~12/0.2~4

→ Operating Temperature Range：-40℃~+105℃

→ Withstand Voltage: AC1600V/1min

→ Strip Length：9-10mm

Datasheet

Material and Finish
Hosuing	PA66 UL94V-0
Electric conductor	Copper Alloy,Tin-plated
Fastening piece Screw/Spring	Steel，Nickel-plated
Fastening piece Cage/Nut	-

Connection Characteristics
Wire Diameter Range（AWG/mm2)	22~12/0.2~4
Strip Length	9-10mm
Torque	M4,1.2N.m
Operating Temperature Range	-40℃~+105℃

Order Number
Package Unit
MOQ
Product Weight (Excluding Package)
