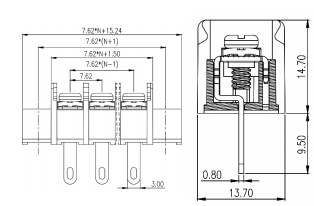

American & Japanese terminal blocks F-25HM-7.62
American & Japanese terminal blocks F-25HM-7.62

? Pitch:7.62mm,Electrical:UL,Rated Voltage:300V,Rated Current:15A,colour:black ;

? In order to meet the requirements of different application,With and without plastic cover are optional ;

? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。


 Pitch:7.62mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:15A

 Wire Diameter Range(AWG/mm2)22~14/0.2~2.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1600V/1min

 Strip Length:7-8mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/SpringSteel,Nickel-plated
Fastening piece Cage/Nut-
Electric Characteristics                ULIEC
Rated Voltage300V250V
Rated Current15A24A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage4KV
Connection Characteristics
Wire Diameter Range(AWG/mm2)22~14/0.2-2.5
Strip Length7-8mm
TorqueM3,0.5N.m
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
