? Pitch：5.0mm，Electrical：UL，Rated Voltage：300V，Rated Current：12A，colour：blue ;
? combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

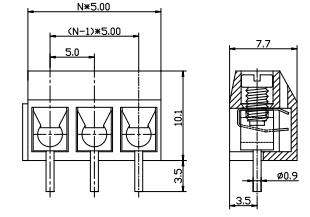

→ Pitch：5.0mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：12A
→ Wire Diameter Range（AWG/mm2）：22~14/0.5~2.5
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC2000V/1min
→ Strip Length：4.5~5mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 ，UL94V-0 |
| Electric conductor | Brass, Tin-plated |
| Fastening piece Screw/Spring | Phosphor Bronze Nickel- platedor Stainless Steel |
| Fastening piece Cage/Nut | M2.5,Steel,Zinc-plated |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 250V |
| Rated Current | 12A | 17.5A |
| Withstand Voltage | AC2000V/1min | |
| Impulse Withstand Voltage | 4KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 22~14/0.5~2.5 |
| Strip Length | 4.5~5mm |
| Torque | 0.4N.m3.5Lbin |
| Operating Temperature Range | -30℃~+120℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
